Site Plan Files

Dated: March 4, 2013


	These are the site plan files for the property on Roundup Place. Please note that some files are “sanitized” versions, not originals.


	*H139b.1*

Bare land map.

6 septic test pits

Sightlines (Mt. Jefferson and Three Sisters) and Backlines (16’ minimum)
to proposed house and driveway.

Power and Water to proposed house and driveway.



	Close-up of 1/8” scale design (old) on map. (large color print file 37”x34”) 6.7 MB



	Close-up of 1/8” scale footings plan on map. (large color print file 37”x34”) 6.2 MB



		Control points (lot only) for proposed house and driveway.

Close-up of 1/8” scale floor plan on map.
(large color print file 37”x34”) 6.7 MB

Close-up of 1/8” scale site plan on map.
(large color print file 37”x34”) 6.5 MB

Site Evaluation Report for septic feasibility.

CRR Architectural Review Committee Application



	Site GeoTechnical Evaluation Report for load bearing.

CRR Architectural
Review Committee

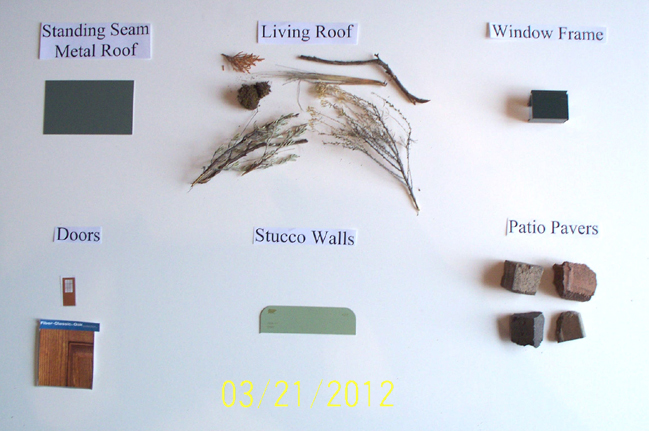

Materials and Color Board
